Synthechnics

Curtis Electromusic Specialties

CEM3396 - µP Controllable Dual Waveform Converter / Processor

Elka EK 22, Cheetah Ms6, Oberheim Matrix-6 & Matrix-6R
Narrow version: Oberheim Matrix 1000, Cheetah MS6

For the Oberheim Matrix-1000, check also my DIL wide to narrow adapter.

Curtis Electromusic Specialties

CEM3374 - double VCO

Oberheim Matrix-12, Xpander, Fender Polaris

Pratt-Reed bushings

Used in Sequential Circuits Prophet 5, Oberheim OB-Xa, PPG, most ARPs, Moog Minimoog, Vox and Farfisa Organs, etc.

Display Oberheim OB-12

PCM1716E - DAC

Oberheim OB12, Korg BX-3, CX-3 year 2000 version

Switch OB-12

Encoder Oberheim OB12

Slide potentiometer OB-12

TMS57070FFT

DSP used in Oberheim OB-12, Korg Z1, Triton, BX-3, CX-3 (modern version), Electribe ES-1, EM-1, and all kind of digital processors like Korg AX-1500G, Vox Tonelab TT, etc

Rotary potentiometer OB-12

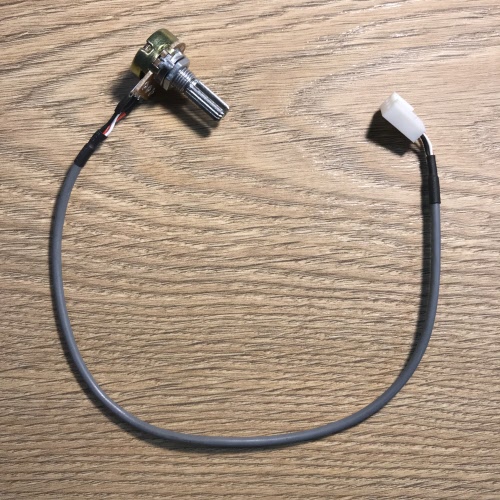

Oberheim Matrix 1000 volume potentiometer

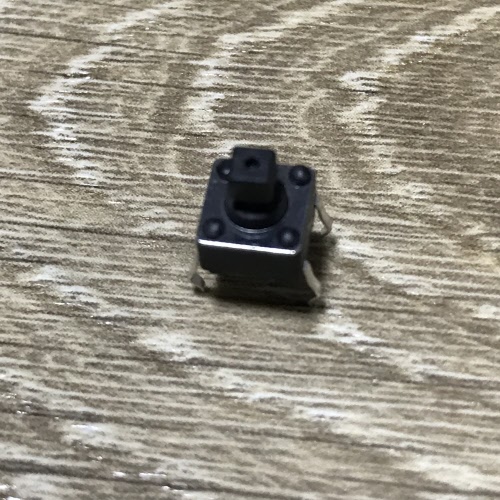

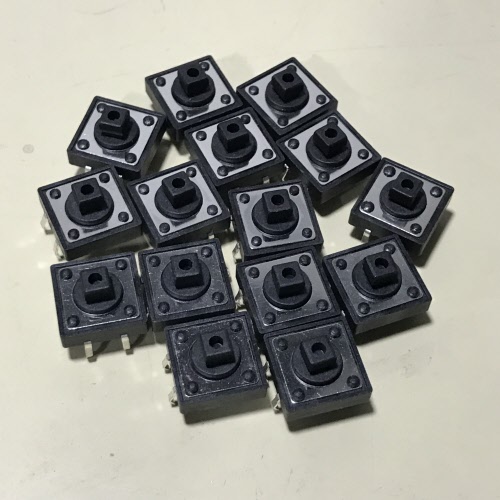

Oberheim Matrix 1000 Push button

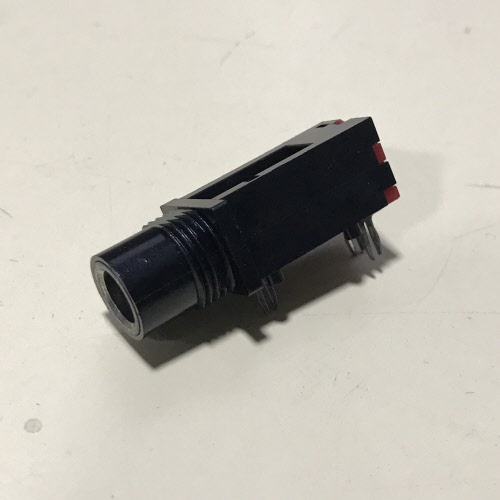

Oberheim Matrix 1000 jack

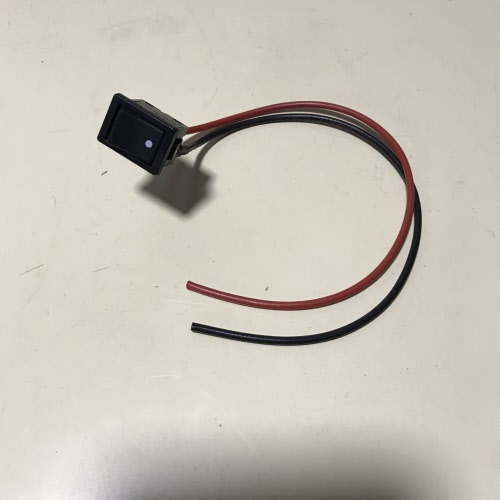

Oberheim Matrix 1000 power switch

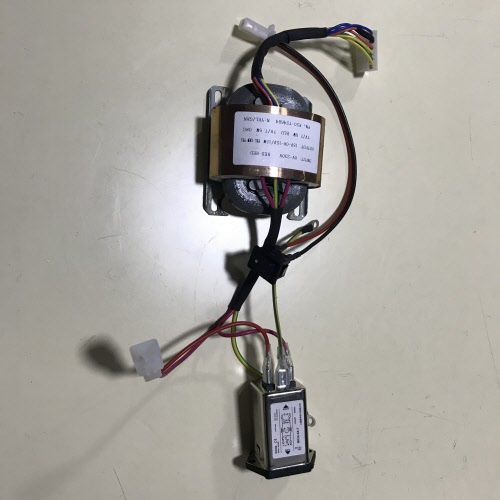

Oberheim Matrix 1000 complete power supply

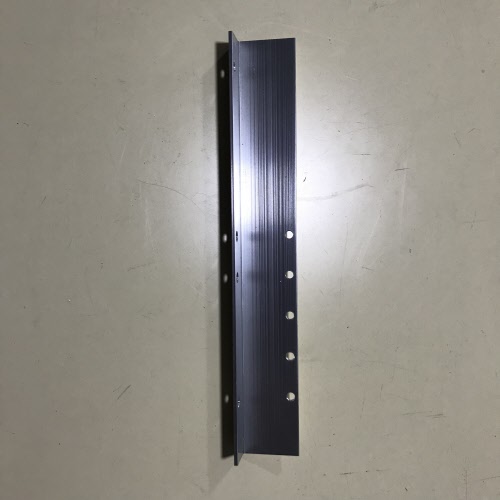

Oberheim Matrix 1000 heatsink

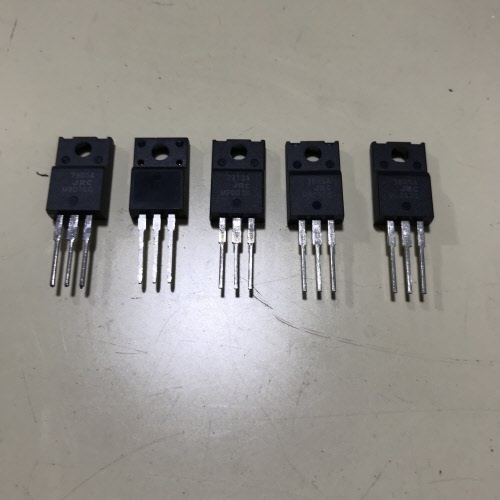

Oberheim Matrix 1000 voltage regulators set

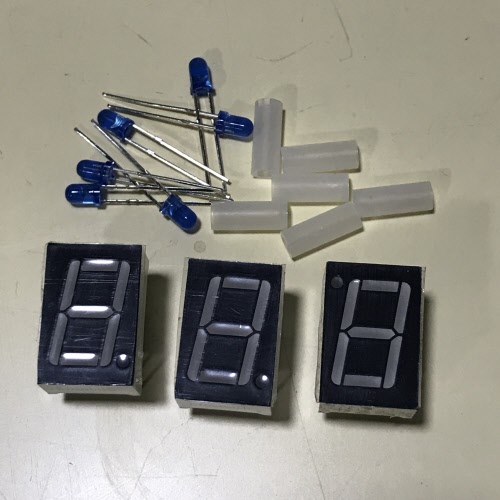

Oberheim Matrix 1000 blue conversion set

AM6012DC DAC

Oberheim Matrix 1000, Sequential Prophet 2000/2002, Solton TS4K, K160, Keytek (Siel) CTS-2000, Roland Jupiter 8 (early version), Moog The Source

MC68B09P, EF68B09 CPU

8 bit CPU

Oberheim Matrix 1000, Sequential Circuits Prophet 2000
